BU5PDF

Name:
    BU5PDF (LET)
Type:
    Library Function
Purpose:
    Compute the Burr type 5 probability density function with shape parameters r and k.
Description:
    The standard Burr type 5 distribution has the following probability density function:

      f(x;r,k) = r*k*(1 + k/(EXP(TAN(x))**(-r-1)*SEC(x)**2/EXP(TAN(x))
-PI/2 <  x <  PI/2; r, k > 0

    with r and k denoting the shape parameters.

    This distribution can be generalized with location and scale parameters in the usual way using the relation

      f(x;r,k,loc,scale) = (1/scale)*f((x-loc)/scale;r,k,0,1)
Syntax:
    LET <y> = BU5PDF(<x>,<r>,<k>,<loc>,<scale>)
                            <SUBSET/EXCEPT/FOR qualification>
    where <x> is a number, parameter, or variable;
                <y> is a variable or a parameter (depending on what <x> is) where the computed Burr type 5 pdf value is stored;
                <r> is a positive number, parameter, or variable that specifies the first shape parameter;
                <k> is a positive number, parameter, or variable that specifies the second shape parameter;
                <loc> is a number, parameter, or variable that specifies the location parameter;
                <scale> is a positive number, parameter, or variable that specifies the scale parameter;
    and where the <SUBSET/EXCEPT/FOR qualification> is optional.

    If <loc> and <scale> are omitted, they default to 0 and 1, respectively.

Examples:
    LET A = BU5PDF(0.3,0.2,1.7)
    LET Y = BU5PDF(X,0.5,2.2,0,5)
    PLOT BU5PDF(X,2,1.8) FOR X = -1.57 0.01 1.57
Note:
    Burr type 5 random numbers, probability plots, and goodness of fit tests can be generated with the commands:

      LET R = <value>
      LET K = <value>
      LET Y = BURR TYPE 5 RANDOM NUMBERS FOR I = 1 1 N
      BURR TYPE 5 PROBABILITY PLOT Y
      BURR TYPE 5 PROBABILITY PLOT Y2 X2
      BURR TYPE 5 PROBABILITY PLOT Y3 XLOW XHIGH
      BURR TYPE 5 KOLMOGOROV SMIRNOV GOODNESS OF FIT Y
      BURR TYPE 5 CHI-SQUARE GOODNESS OF FIT Y2 X2
      BURR TYPE 5 CHI-SQUARE GOODNESS OF FIT Y3 XLOW XHIGH

    The following commands can be used to estimate the r and k shape parameters for the Burr type 5 distribution:

      LET R1 = <value>
      LET R2 = <value>
      LET K1 = <value>
      LET K2 = <value>
      BURR TYPE 5 PPCC PLOT Y
      BURR TYPE 5 PPCC PLOT Y2 X2
      BURR TYPE 5 PPCC PLOT Y3 XLOW XHIGH
      BURR TYPE 5 KS PLOT Y
      BURR TYPE 5 KS PLOT Y2 X2
      BURR TYPE 5 KS PLOT Y3 XLOW XHIGH

    The default values for R1 and R2 are 0.5 and 10 and the default values for K1 and K2 are 0.5 and 10..

    The probability plot can then be used to estimate the location and scale (location = PPA0, scale = PPA1).

    The BOOTSTRAP DISTRIBUTION command can be used to find uncertainty intervals for the parameter estimates based on the ppcc plot and ks plot.

Default:
    None
Synonyms:
    BURR TYPE V is a synonym for BURR TYPE 5.
Related Commands:
    BU5CDF = Compute the Burr type 5 cumulative distribution function.
    BU5PPF = Compute the Burr type 5 percent point function.
    BU2PDF = Compute the Burr type 2 probability density function.
    BU3PDF = Compute the Burr type 3 probability density function.
    BU4PDF = Compute the Burr type 4 probability density function.
    BU6PDF = Compute the Burr type 6 probability density function.
    BU7PDF = Compute the Burr type 7 probability density function.
    BU8PDF = Compute the Burr type 8 probability density function.
    BU9PDF = Compute the Burr type 9 probability density function.
    B10PDF = Compute the Burr type 10 probability density function.
    B11PDF = Compute the Burr type 11 probability density function.
    B12PDF = Compute the Burr type 12 probability density function.
    RAYPDF = Compute the Rayleigh probability density function.
    WEIPDF = Compute the Weibull probability density function.
    EWEPDF = Compute the exponentiated Weibull probability density function.
Reference:
    Burr (1942), "Cumulative Frequency Functions", Annals of Mathematical Statistics, 13, pp. 215-232.

    Johnson, Kotz, and Balakrishnan (1994), "Contiunuous Univariate Distributions--Volume 1", Second Edition, Wiley, pp. 53-54.

    Devroye (1986), "Non-Uniform Random Variate Generation", Springer-Verlang, pp. 476-477.

Applications:
    Distributional Modeling
Implementation Date:
    2007/10
Program 1:

    LABEL CASE ASIS
    TITLE CASE ASIS
    TITLE OFFSET 2
    .
    MULTIPLOT 4 4
    MULTIPLOT CORNER COORDINATES 0 0 100 95
    MULTIPLOT SCALE FACTOR 4
    .
    LET RVAL = DATA 0.5  1  2  5
    LET KVAL = DATA 0.5  1  2  5
    .
    LOOP FOR IROW = 1 1 4
        LOOP FOR ICOL = 1 1 4
            LET R  = RVAL(IROW)
            LET K = KVAL(ICOL)
            TITLE R = ^r, K = ^k
            PLOT BU5PDF(X,R,K) FOR X = -1.57  0.01  1.57
        END OF LOOP
    END OF LOOP
    .
    END OF MULTIPLOT
    .
    JUSTIFICATION CENTER
    MOVE 50 97
    TEXT Burr Type 5 Probability Density Functions

    plot generated by sample program
Program 2:

    let r = 2.1
    let k = 1.3
    let rsav = r
    let ksav = k
    .
    let y = burr type 5 random numbers for i = 1 1 200
    let y = 10*y
    let amin = minimum y
    let amax = maximum y
    .
    y1label Correlation Coefficeint
    x1label K (Curves Represent Values of R)
    let r1 = 0.5
    let r2 = 5
    let k1 = 0.5
    let k2 = 3
    burr type 5 ppcc plot y
    let r = shape1
    let k = shape2
    justification center
    move 50 6
    text Rhat = ^r (R = ^rsav), Khat = ^k (K = ^ksav)
    move 50 2
    text Maximum PPCC = ^maxppcc
    .

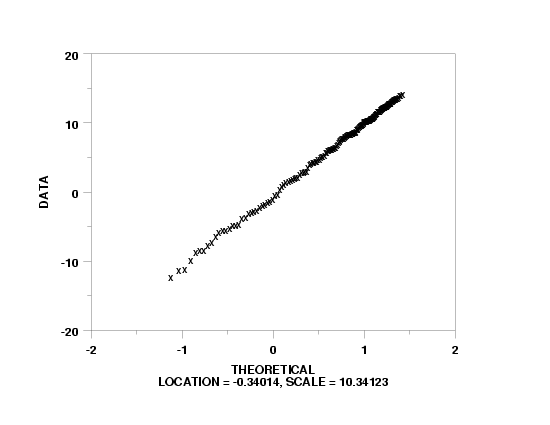

    y1label Data
    x1label Theoretical
    char x
    line bl
    burr type 5 prob plot y
    move 50 6
    text Location = ^ppa0, Scale = ^ppa1
    char bl
    line so
    .
    let loc = ppa0
    let scale = ppa1
    .
    y1label Relative Frequency
    x1label
    relative hist y
    limits freeze
    pre-erase off
    line color blue
    plot bu5pdf(x,r,k,loc,scale) for x = amin .01 amax
    line color black
    limits
    pre-erase on
    .
    let ksloc = loc
    let ksscale = scale
    burr type 5 kolmogorov smirnov goodness of fit y

    plot generated by sample program

    plot generated by sample program

    plot generated by sample program

                       KOLMOGOROV-SMIRNOV GOODNESS-OF-FIT TEST

     NULL HYPOTHESIS H0:      DISTRIBUTION FITS THE DATA
     ALTERNATE HYPOTHESIS HA: DISTRIBUTION DOES NOT FIT THE DATA
     DISTRIBUTION:            BURR TYPE 5
        NUMBER OF OBSERVATIONS              =      200

     TEST:
     KOLMOGOROV-SMIRNOV TEST STATISTIC      =   0.2955037E-01

        ALPHA LEVEL         CUTOFF              CONCLUSION
                10%       0.086*              ACCEPT H0
                          0.085**
                 5%       0.096*              ACCEPT H0
                          0.095**
                 1%       0.115*              ACCEPT H0
                          0.114**

         *  - STANDARD LARGE SAMPLE APPROXIMATION  ( C/SQRT(N) )
        ** - MORE ACCURATE LARGE SAMPLE APPROXIMATION  ( C/SQRT(N + SQRT(N/10)) )
