CUMULATIVE (LET)

Name:
    CUMULATIVE (LET)
Type:
    Let Subcommand
Purpose:
    Compute a cumulative statistic for a variable.
Description:
    It is sometimes useful to a compute a cumulative value for a statistic. That is, for element i of the response variable we compute the value of the specified statistic for elements 1 to i.

    Although this command is most commonly used for a location statistic, it can in fact be used for any supported statistic (enter HELP STATISTIC for a list of supported statistics).

Syntax:
    LET <yout> = CUMULATIVE <stat> <y1> ... <yk>
                            <SUBSET/EXCEPT/FOR qualification>
    where <y1> ... <yk> is a list of one to three response variables (depending on what <stat> is);
                <stat> is one of the supported statistics (HELP STATISTICS for a list);
                <yout> is a variable where the computed values are stored;
    and where the <SUBSET/EXCEPT/FOR qualification> is optional.
Examples:
    LET Y2 = CUMULATIVE MAD Y
    LET Y2 = CUMULATIVE MEDIAN Y
    LET Y2 = CUMULATIVE SD Y FOR I = 1 1 50
Note:
    The commands CUMULATIVE AVERAGE, CUMULATIVE SUM, CUMULATIVE PRODUCT, CUMULATIVE INTEGRAL, CUMULATIVE MINIMUM, and CUMULATIVE MAXIMUM are implemented separately, and more efficiently, from this command.
Default:
    None
Synonyms:
    None
Related Commands: Applications:
    Data Analysis
Implementation Date:
    2013/01
Program:

    skip 25
    read mavro.dat y
    let n = size y
    let x = sequence 1 1 n
    .
    let y1 = cumulative median y
    let y2 = cumulative lower quartile y
    let y3 = cumulative upper quartile y
    .
    line color red black black
    .
    plot y1 y2 y3 vs x

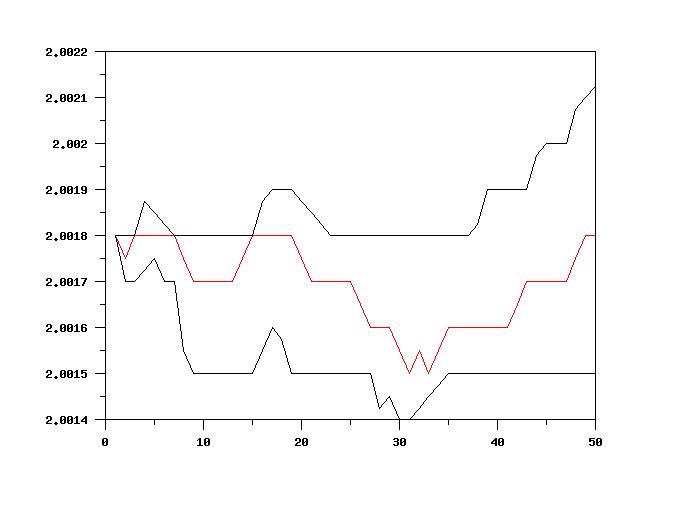

    plot generated by sample program

Date created: 01/07/2013
Last updated: 01/13/2013
