Dataplot Vol 2 Vol 1

DIFFERENCE OF VARIANCE

Name:
    DIFFERENCE OF VARIANCE (LET)
Type:
    Let Subcommand
Purpose:
    Compute the difference between the variances for two response variables.
Description:
    The variance is a common measure of the spread of a distribution or variable. The formula is:

      \( s = \frac{\sum_{i=1}^{n}{(x - \bar{x})^2}}{n-1} \)

    with \( \bar{x} \) denoting the mean.

    For the differeence of variances, the variance is computed for each of two samples then their difference is taken.

Syntax:
    LET <par> = DIFFERENCE OF VARIANCE <y1> <y2>
                            <SUBSET/EXCEPT/FOR qualification>
    where <y1> is the first response variable;
                <y2> is the first response variable;
                <par> is a parameter where the computed difference of the variances is stored;
    and where the <SUBSET/EXCEPT/FOR qualification> is optional.
Examples:
    LET A = DIFFERENCE OF VARIANCE Y1 Y2
    LET A = DIFFERENCE OF VARIANCE Y1 Y2 SUBSET X > 1
Note:
    Dataplot statistics can be used in a number of commands. For details, enter

Default:
    None
Synonyms:
    None
Related Commands: Applications:
    Data Analysis
Implementation Date:
    2003/03
Program:
    SKIP 25
    READ IRIS.DAT Y1 TO Y4 X
    .
    LET A = DIFFERENCE OF VARIANCE Y1 Y2
    TABULATE DIFFERENCE OF VARIANCE Y1 Y2 X
    .
    XTIC OFFSET 0.2 0.2
    X1LABEL GROUP ID
    Y1LABEL DIFFERENCE OF VARIANCE
    CHAR X
    LINE BLANK
    DIFFERENCE OF VARIANCE PLOT Y1 Y2 X
    CHAR X ALL
    LINE BLANK ALL
    BOOTSTRAP DIFFERENCE OF VARIANCE PLOT Y1 Y2 X

    Dataplot generated the following output.
           ********************************************
           **  LET A = DIFFERENCE OF VARIANCE Y1 Y2  **
           ********************************************


     THE COMPUTED VALUE OF THE CONSTANT A             =  0.49571407E+00


           ***********************************************
           **  TABULATE DIFFERENCE OF VARIANCE Y1 Y2 X  **
           ***********************************************


                     *    Y1       AND Y2
         X           *    DIFFERENCE OF VARIANCES
     **********************************************
         1.00000     *   -0.194408E-01
         2.00000     *    0.167963
         3.00000     *    0.300339

           GROUP-ID AND STATISTIC WRITTEN TO FILE DPST1F.DAT

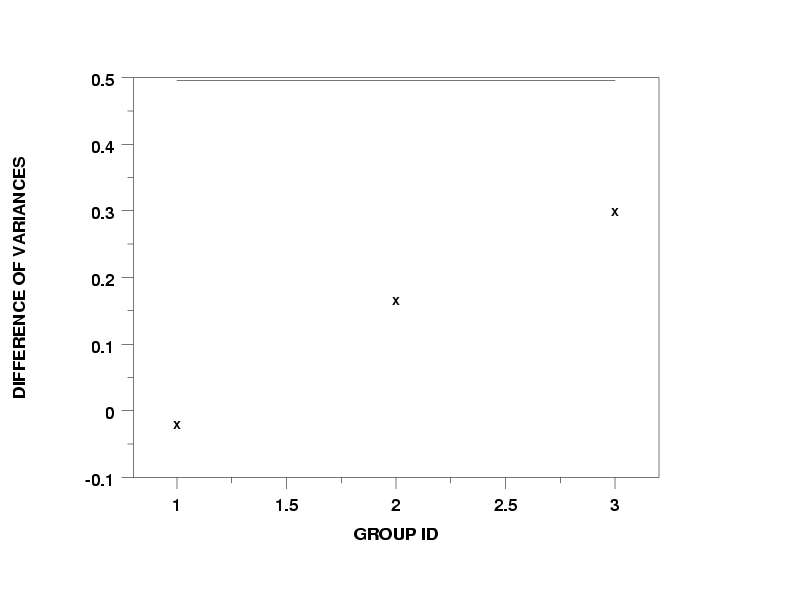

    plot generated by sample program

    plot generated by sample program
