LSNPPF

Name:
    LSNPPF (LET)
Type:
    Library Function
Purpose:
    Compute the log-skew-normal percent point function.
Description:
    The log-skew-normal distribution can be defined in terms of the skew-normal distribution as follows:

      f(x,lambda,sd)=(1/(sd*x))*phi(LOG(x)/sd;lambda)
 0 < x, sd < infinity; -infinity < lambda < infinity

    with lambda denoting the skewness parameter, sd denoting the standard deviation of the corresponding normal distribution, and phi(x;lambda denoting the probability density of the skew normal distribution.

    This is analogous to how the lognormal distribution is defined in terms of the normal distribution. If lamba = 0, the log-skew-normal distribution reduces to the lognormal distributiion.

    The log-skew-normal percent point is computed by numerically inverting the cumulative distribution function using a bisection method.

    The standard log-skew-normal distribution can be generalized with location and scale parameters in the usual way.

Syntax:
    LET <y> = LSNPPF(<p>,<lambda>,<sd>,<loc>,<scale>)
                            <SUBSET/EXCEPT/FOR qualification>
    where <p> is a variable or a parameter;
                <lambda> is a number of parameter that specifies the value of the skewness shape parameter;
                <sd> is a number of parameter that specifies the value of the sd shape parameter;
                <loc> is a number of parameter that specifies the value of the location parameter;
                <scale> is a number of parameter that specifies the value of the scale parameter;
                <y> is a variable or a parameter (depending on what <x> is) where the computed log-skew-normal ppf value is stored;
    and where the <SUBSET/EXCEPT/FOR qualification> is optional.

    Note that the location and scale parameters are optional.

Examples:
    LET A = LSNPPF(0.95,1,1)
    LET A = LSNPPF(P,LAMBDA,SD)
    PLOT LSNPPF(P,LAMBDA,SD) FOR P = 0.01 0.01 0.99
Default:
    None
Synonyms:
    None
Related Commands:
    LSNCDF = Compute the log-skew-normal cumulative distribution function.
    LSNPDF = Compute the log-skew-normal probability density function.
    SNPDF = Compute the skew-normal probability density function.
    NORPDF = Compute the normal density function.
    LGNPDF = Compute the lognormal density function.
    CHIPDF = Compute the chi probability density function.
    CHSPDF = Compute the chi-square probability density function.
    WEIPDF = Compute the Weibull probability density function.
Reference:
    "Log-Skew-Normal and Log-Skew-t Distributions as Models for Family Income Data", Azzalini, Dal Cappello, and Kotz, Journal of Income Distribution, Vol. 11, No. 3-4, 2003, pp. 12-20.

    "A Class of Distributions Which Includes the Normal Ones", Azzalini, Scandinavian Journal of Statistics, 12, 171-178.

    "Continuous Univariate Distributions: Volume I", Second Edition, Johnson, Kotz, and Balakrishnan, Wiley, 1994, p. 454.

Applications:
    Distributional Modeling
Implementation Date:
    3/2004
Program:

    Y1LABEL Probability
    X1LABEL X
    LABEL CASE ASIS
    X1LABEL DISPLACEMENT 12
    Y1LABEL DISPLACEMENT 12
    MULTIPLOT 2 2
    MULTIPLOT CORNER COORDINATES 0 0 100 100
    TITLE LOG-SKEW-NORMAL: LAMBDA = 0
    PLOT LSNPPF(P,0,1) FOR P = 0.01  0.01  0.99
    TITLE LOG-SKEW-NORMAL: LAMBDA = 1
    PLOT LSNPPF(P,1,1) FOR P = 0.01  0.01  0.99
    TITLE LOG-SKEW-NORMAL: LAMBDA = 5
    PLOT LSNPPF(P,5,1) FOR P = 0.01  0.01  0.99
    TITLE LOG-SKEW-NORMAL: LAMBDA = 10
    PLOT LSNPPF(P,10,1) FOR P = 0.01  0.01  0.99
    END OF MULTIPLOT

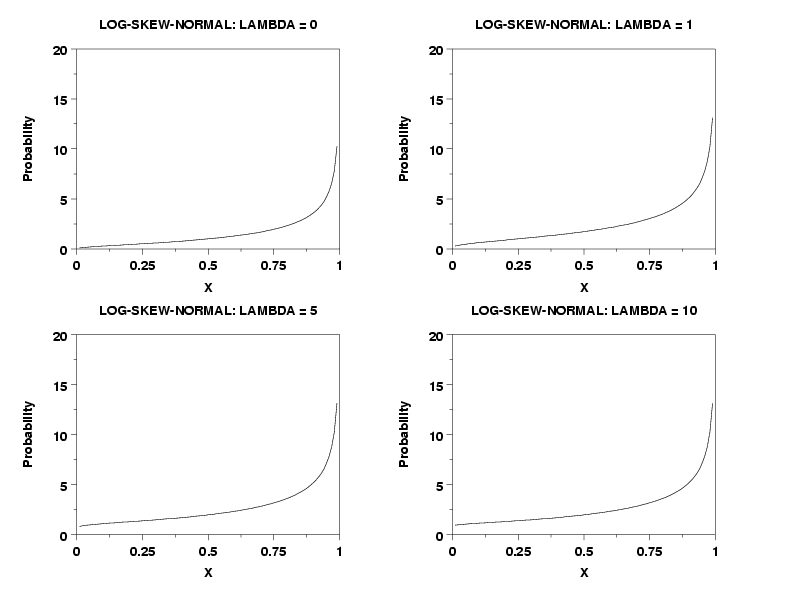

    plot generated by sample program

Date created: 7/7/2004
Last updated: 7/7/2004
