# GL2CDF

Name:
GL2CDF (LET)
Type:
Library Function
Purpose:
Compute the type 2 generalized logistic cumulative distribution function with shape parameter .
Description:
The standard form of the type 2 generalized logistic distribution has the cumulative distribution function:

The general form of the type 2 generalized logistic cumulative distribution function can be obtained by replacing x in the above formula with (x-loc)/scale.

Syntax:
LET <y> = GL2CDF(<x>,<alpha>,<loc>,<scale>)
<SUBSET/EXCEPT/FOR qualification>
where <x> is a variable, number or parameter;
<alpha> is a number or parameter that specifies the value of the shape parameter;
<loc> is a number or parameter that specifies the value of the location parameter;
<scale> is a number or parameter that specifies the value of the scale parameter;
<y> is a variable or a parameter (depending on what <x> is) where the computed generalized logistic type 2 cdf value is stored;
and where the <SUBSET/EXCEPT/FOR qualification> is optional.

The location and scale parameters are optional.

Examples:
LET A = GL2CDF(3,2)
LET X2 = GL2CDF(X1,ALPHA)
PLOT GL2CDF(X,ALPHA) FOR X = -5 0.01 5
Default:
None
Synonyms:
None
Related Commands:
 GL2PDF = Compute the generalized logistic type 2 probability density function. GL2PPF = Compute the generalized logistic type 2 percent point function. GLOPDF = Compute the generalized logistic type 1 probability density function. GL3PDF = Compute the generalized logistic type 3 probability density function. GL4PDF = Compute the generalized logistic type 4 probability density function. GL5PDF = Compute the generalized logistic (Hosking parameterization) probability density function. LOGPDF = Compute the logistic probability density function. NORPDF = Compute the normal probability density function. LGNPDF = Compute the logmormal probability density function.
Reference:
"Continuous Univariate Distributions - 2", 2nd. Ed., Johnson, Kotz, and Balakrishnan, John Wiley, 1994 (pp. 140-147).
Applications:
Distributional Modeling
Implementation Date:
2006/3

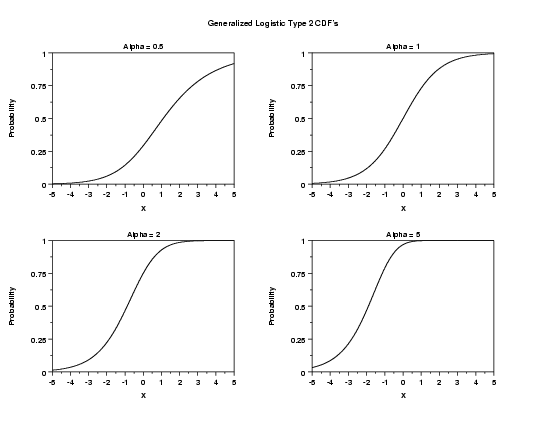

Program:
```
LET A = DATA 0.5  1  2  5
MULTIPLOT 2 2
MULTIPLOT CORNER COORDINATES 0 0 100 95
MULTIPLOT SCALE FACTOR 2
LABEL CASE ASIS
TITLE CASE ASIS
TITLE DISPLACEMENT 2
X1LABEL X
Y1LABEL Probability
X1LABEL DISPLACEMENT 12
Y1LABEL DISPLACEMENT 15
.
LOOP FOR K = 1 1 4
LET ALPHA = A(K)
TITLE Alpha = ^ALPHA
PLOT GL2CDF(X,ALPHA) FOR X = -5  0.01  5
END OF LOOP
END OF MULTIPLOT
CASE ASIS
MOVE 50 97
JUSTIFICATION CENTER
TEXT Generalized Logistic Type 2 CDF's
```

Date created: 3/27/2006
Last updated: 3/27/2006
